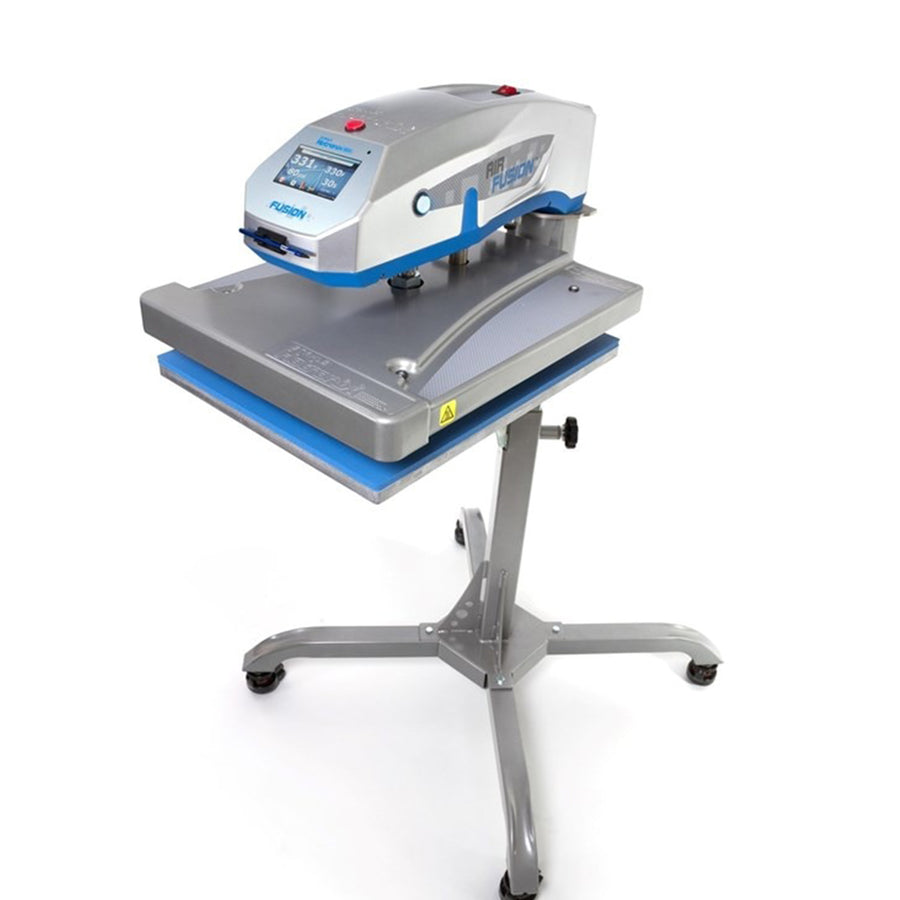

Hotronix® Air Fusion IQ® Heat Press

The Air Fusion IQ is available in a Pedestal style with an adjustable-height stand and a space-saving Table Top style, both featuring a 16 inch by 20 inch upper platen with fast recovering heater technology.

Key features include air power that reduces operator fatigue in high-volume shops, hands-free auto-swing that creates a heat-free workspace, Threadability that lets users load garments once and easily rotate from front to back, compatibility with all Quick Change Platens, a touch screen controller with multi-swipe gestures, and the ability to store hundreds of application settings.

The Air Fusion IQ carries a lifetime warranty on the heating element, a 5 year warranty on the framework, a 2 year warranty on the circuit board, and a 1 year warranty on parts and labor.

Using a phone or computer, visit iq.hotronix.com to create an account, register your heat press with its serial number under Manage Heat Presses, then on the heat press Setup Menu touch WIFI to connect to your network and touch the Cloud icon to enter the verification code shown in the IQ Portal to complete registration.

The air compressor used with the press should be no less than 8 gallon capacity and no less than 2.3 CFM, rated for continuous operation, delivering 110-120 psi to the press; the water regulator and air filter should be checked and drained regularly to avoid pumping water into the press.

No, the heat press comes pre-calibrated from the factory and calibration is only required after sensor or controller replacement; pressure is periodically self-calibrated, and incorrect calibration can result in poor print results or damage not covered by warranty.

In Standby Mode the heater turns off while the touch screen remains on, displaying an orange background as a warning if the platen is still hot above 100 degrees Fahrenheit (38 degrees Celsius); Standby Mode must be used for the Auto On feature to function.

Yes, the Auto On/Off feature can be enabled from the Setup Menu by setting On Hour/Minute and Off Hour/Minute; the heat press must be in Standby Mode and the power switch must be in the ON position for the Auto On feature to work.
