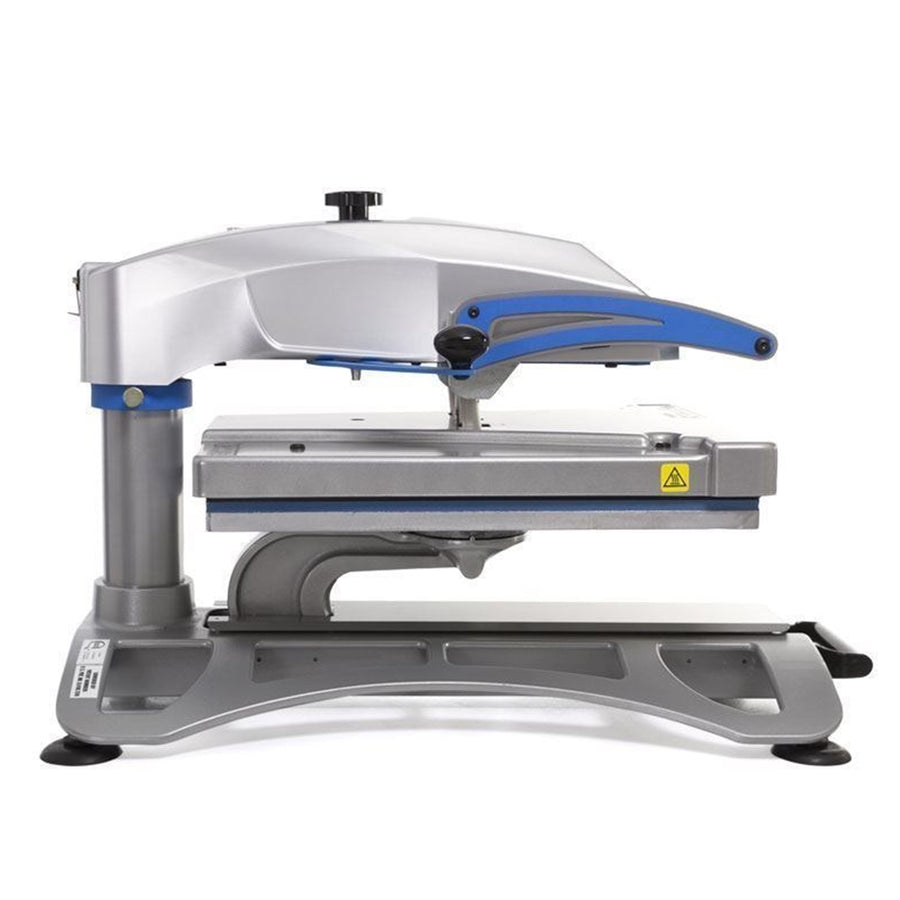

Hotronix® Fusion IQ® Heat Press
Shipping cost should be quoted after the order is placed The Fusion IQ® Heat Press is designed so your business can work smarter, not harder. This digital heat
Warranty
- Lifetime Warranty on Heating Element
- 5 yr on Framework
- 2 yr on Circuit board
- 1 yr parts/labor
| Quantity | Unit price | Discount |
|---|
THE BEST EQUIPMENT
Online access to reporting, including total impressions, active/idle time, and average cycle time.
Self-diagnostics help with troubleshooting and maintenance.
16" x 20" platen
Threadability™ makes it easy to load garments onto the lower platen and print front, back, and sides
Quick Change lower platens available for printing smaller items, hats, shoes, etc.
Multiple time settings.
Auto on/off setting.
Multi-level password settings.
Energy-saving 4 hour sleep mode.
Production cycle counter.
Available in eight languages.
3/4" thick non-stick coated upper platen.
Set to F° or C°
Easy-to-install interchangeable platens.
Live digital time, temperature, and pressure readout.
Temperature range 32°F – 430°F
UL/ULC/CE/RoHS compliant.; Electrical Options:; 120 v; 15 amps; 1800 w; 240 v; 7.5 amps; 1800 w
Must have designated circuit breaker
Cast-aluminum frame.
Actual Weight: 137 lbs
Shipping Weight: 150 lbs
Dimensions: 32" x 18" x 20"
Shipping Dimensions: 37" x 25" x 24"
Technical sheet
Download the full spec sheet for this product.
Frequently asked questions
The Fusion IQ's patented dual function lets it operate as a swing press, pivoting the heat platen outward, or as a draw press, pulling the lower platen out on rails, giving a heat-free workspace either way.
The Fusion IQ can be set from 32 degrees F up to 430 degrees F.
Heat the press to 350 degrees F/177 degrees C, place a temperature strip on the center of the platen or use a contact thermocouple thermometer, touch the Settings icon on the Home Screen, touch Calibration, then Temperature, and adjust the Temperature Calibration value to match the measured target temperature.
The default Manager-level password on the touch screen is M.
Yes, it can connect to a WiFi network and be registered to the IQ Portal at iq.hotronix.com to track usage, assign operator access levels, and receive firmware updates.
Standby Mode turns off the heater while keeping the touch screen on, showing an orange background as a warning if the platen is still above 100 degrees F/38 degrees C, and it must be used for the Auto On/Off scheduling feature to work.
The touch screen interface is available in eight languages.
It uses a 16" x 20" platen with a 3/4" thick non-stick coated upper platen.
